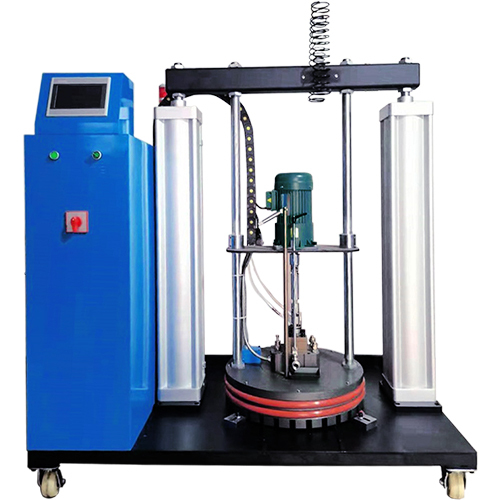

Single disc hot melt adhesive machine

Single disc hot melt adhesive machine, as the name suggests, usually adopts a single disc design for heating and melting hot melt adhesive strips or particles. This design makes the machine structure relatively compact, easy to operate and maintain. The single disc hot melt adhesive machine heats solid adhesive strips or particles to a molten state through high temperature, and then extrudes the melted adhesive liquid through a pressure system to achieve the purpose of bonding.

Single disc hot melt adhesive machines are widely used in multiple industries, including but not limited to:
Automotive industry: used for the manufacturing of car headlights and taillights, windshields, car doors, and interior sealing.
Packaging industry: used for sealing boxes and packaging paper for attaching beverage straws.
Filter industry: used for manufacturing air filters without partitions, with strong and reliable adhesion and good sealing.
Bottle cap bonding industry: such as the bonding of cosmetics bottle caps and Baijiu bottle caps.
Non woven fabric industry: It is also used in the production of diapers, adult incontinence products, women's sanitary napkins, medical protective clothing and other products.
Rubber bucket capacity
5gallon(20L)
Rubber bucket specifications
Φ280mm or Φ286mm
Electricity demand
AC380V/50Hz
Electric heating power
6000W
Operating temperature
<= 200°C
Control accuracy
±1°C
Temperature sensing type
K - type(PT100)
Ambient temperature
- 10°C ~ 50°C
Air pressure demand
5kg/m²
Melting method
Heating pressure plate
Melting rate
20kg/H
Glue supply method
Gear pump
Driving method
Cylinder + motor drive
Glue quantity control
Frequency transformer
Maximum pressure
8.5Mpa
Number of pumps
1PCS
Using media
PUR hot melt adhesive
Use consistency
<= 20000 CpS
Rubber conveying interface
2 - way
Machine weight
about 210 kg
Overall dimensions
1050*550*1450(raise1850)mm
  • Single disc hot melt adhesive machine

Описание

  • Low production cost:
The cost of a single plate hot melt adhesive machine is relatively low, making it suitable for use by small and medium-sized enterprises.
  • Convenient to move:
Usually small in size and light in weight, it is easy to move and arrange on the workbench.
  • Easy to operate:
Opening the lid is simple and easy, convenient for adding materials, and has high safety.
  • energy conservation:
Excellent performance in energy-saving design, such as the progressive preheating melting tank design that can increase the speed of melt adhesive while saving energy.
  • Easy maintenance:
The structure is simple and can be self maintained according to the instructions for use and maintenance.
  • Strong applicability:
Can be applied to various types and shapes of hot melt adhesive, widely used in various manufacturing industries such as footwear, packaging boxes, woodworking, electronics, and electrical appliances.
